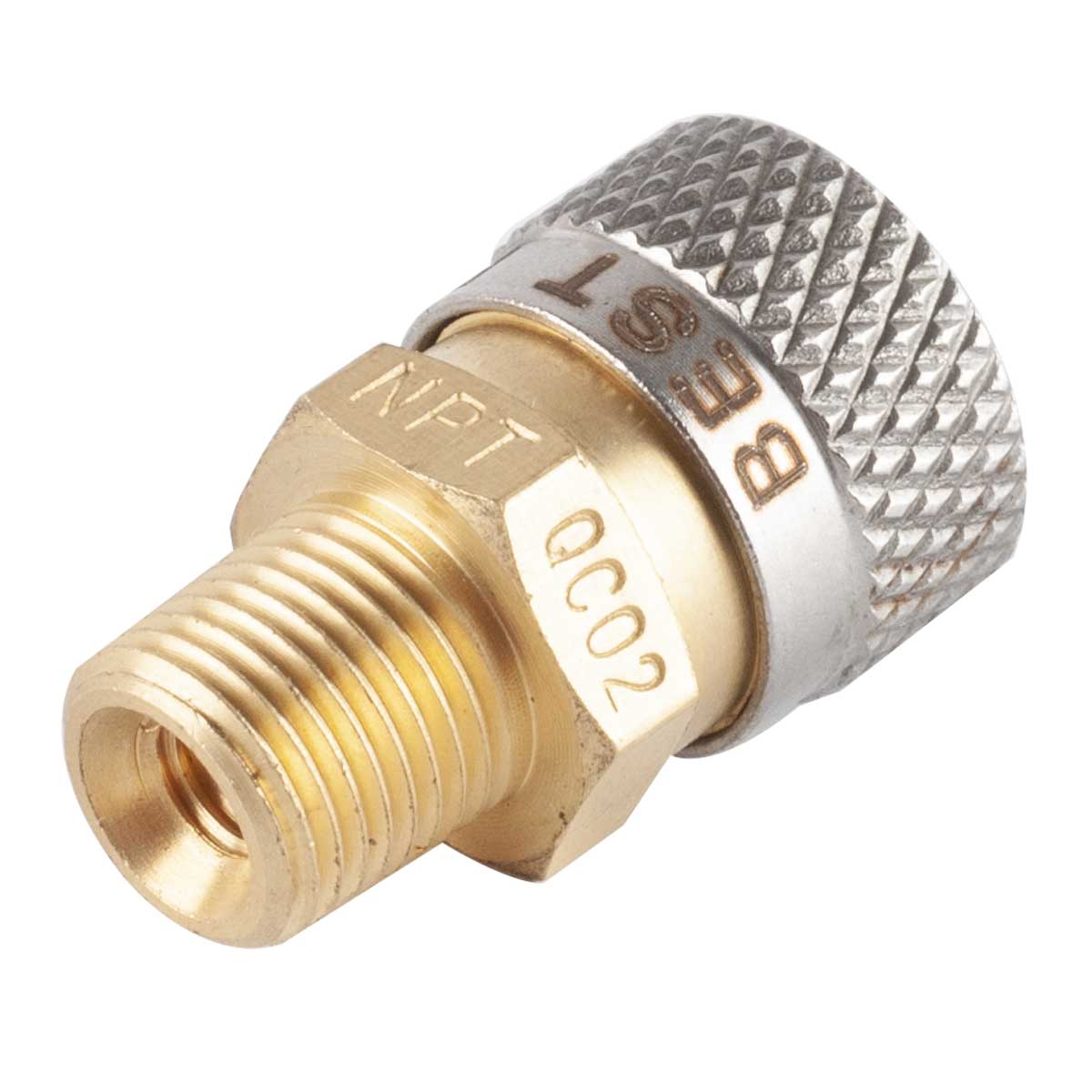

1/8″ NPT Male Quick Coupler Socket.

1/8″ NPT Quick Coupler Socket incorporating a simple flow restrictor device.
NPT is typical paintball equipment and USA standard.

Suits our Quick Coupler Plugs, High Pressure Fill Valve, Daystate, Benjamin, Brocock, Crosman, Logun Eagle, PCR1, Ripley most HPA Paintball & Air Soft Tank side fill nipples & other compatible fill couplers.

1/4″ BSP Male Thread will fit the outlet on most DIN Cylinder adaptors. Also used in our popular Quick Detach Hose Kit.

M10 x 1 Male and Female Thread will fit the hoses found on many Chinese originated pumps and compressors.

Safe for use on all pre-charged equipment up to and including 300BAR, 4500psi for breathing air only.

Max Working Pressure 300BAR, 4500psi.

Do not exceed maximum working pressure.

Compatible with Foster 12FS, 12FSS and 12MS Straight Thru Quick Snap Couplers.
